Product Description

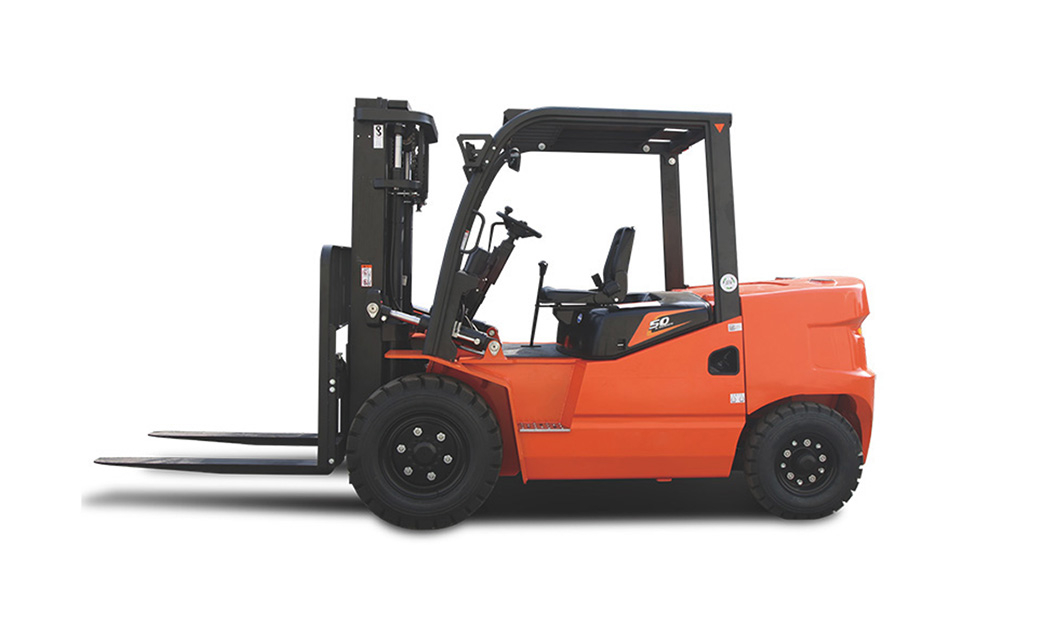

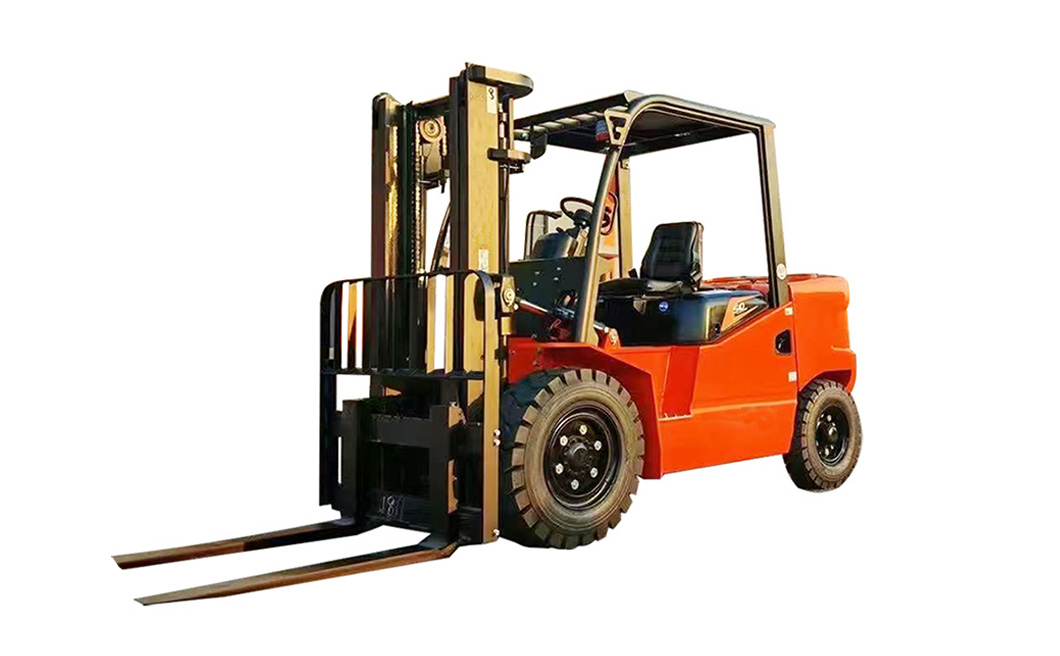

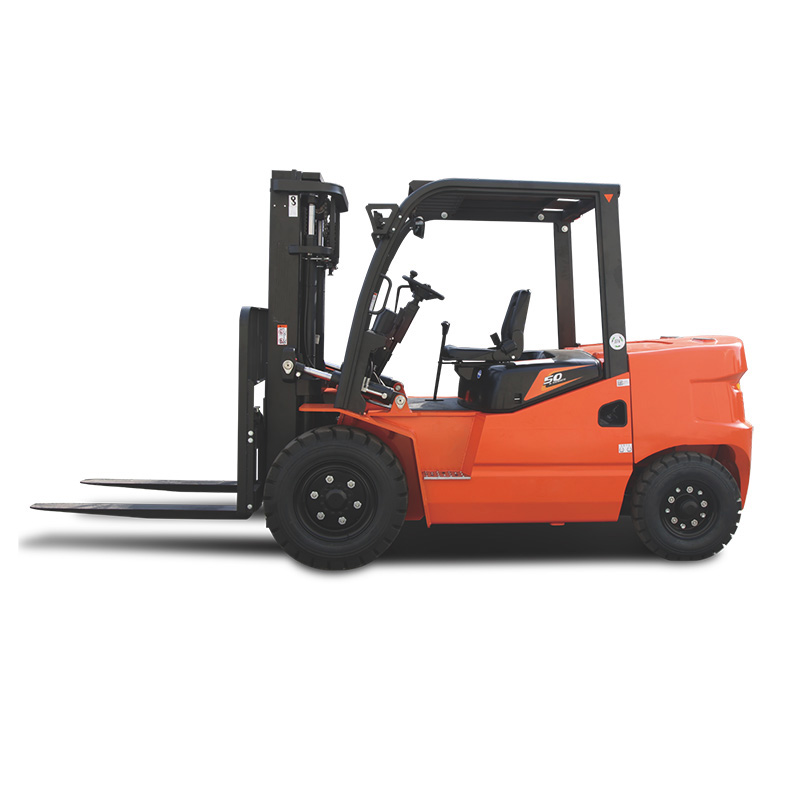

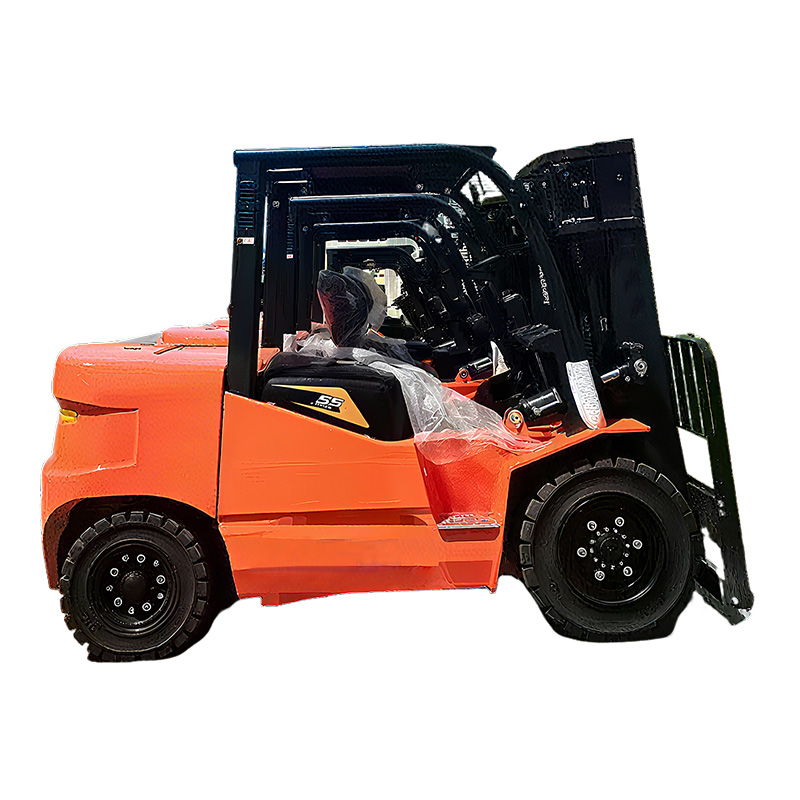

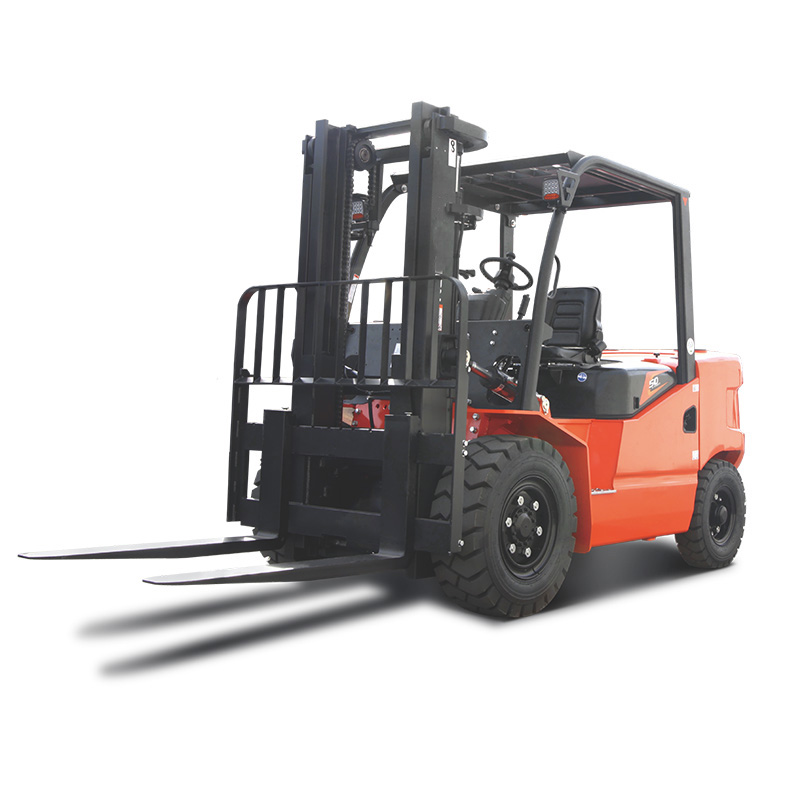

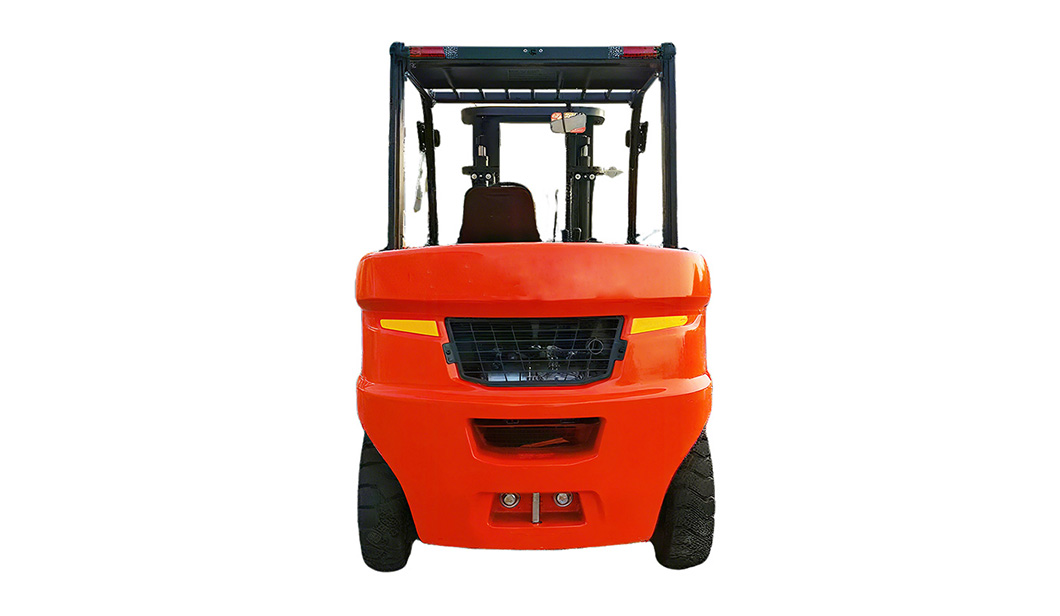

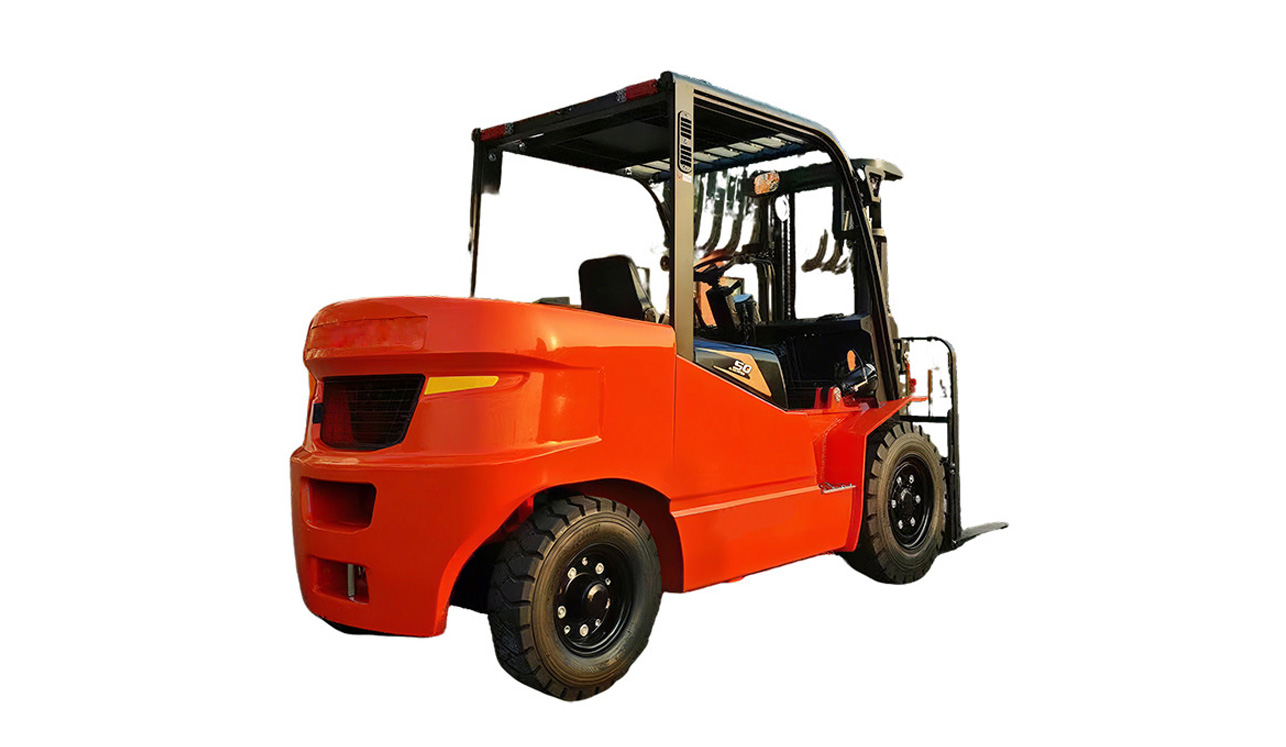

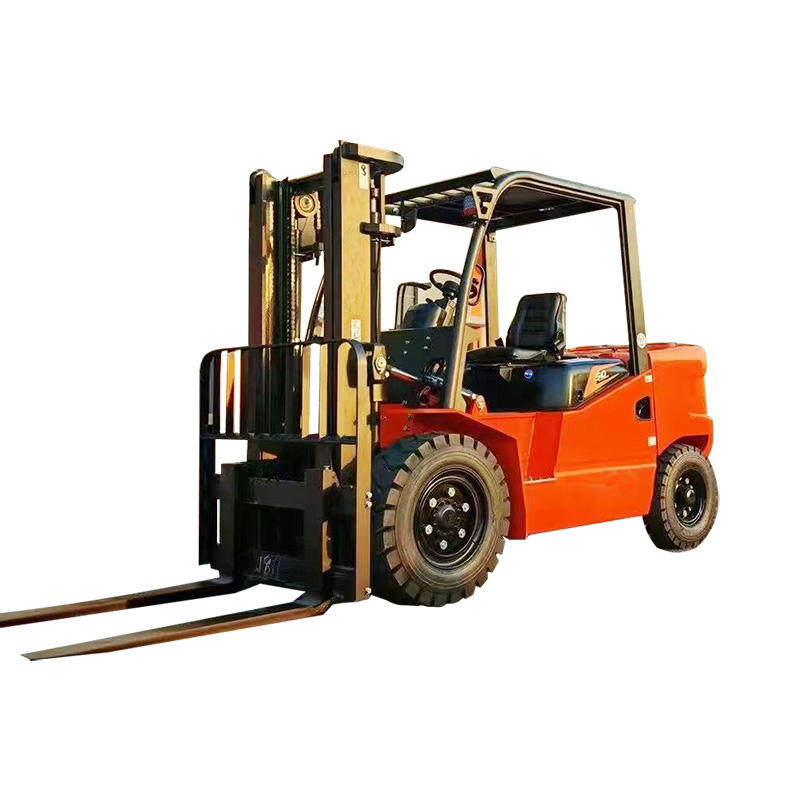

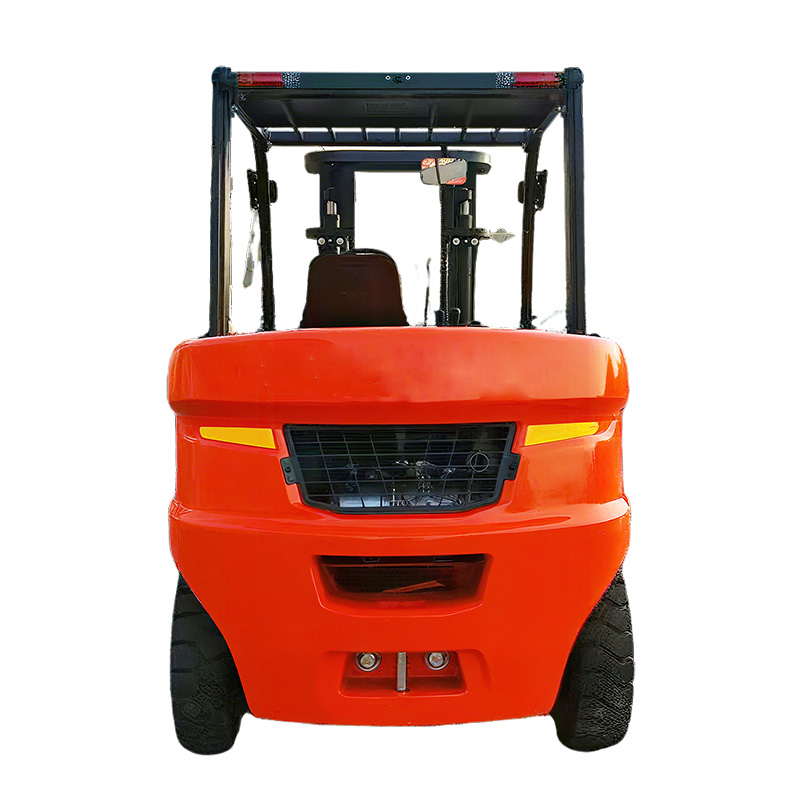

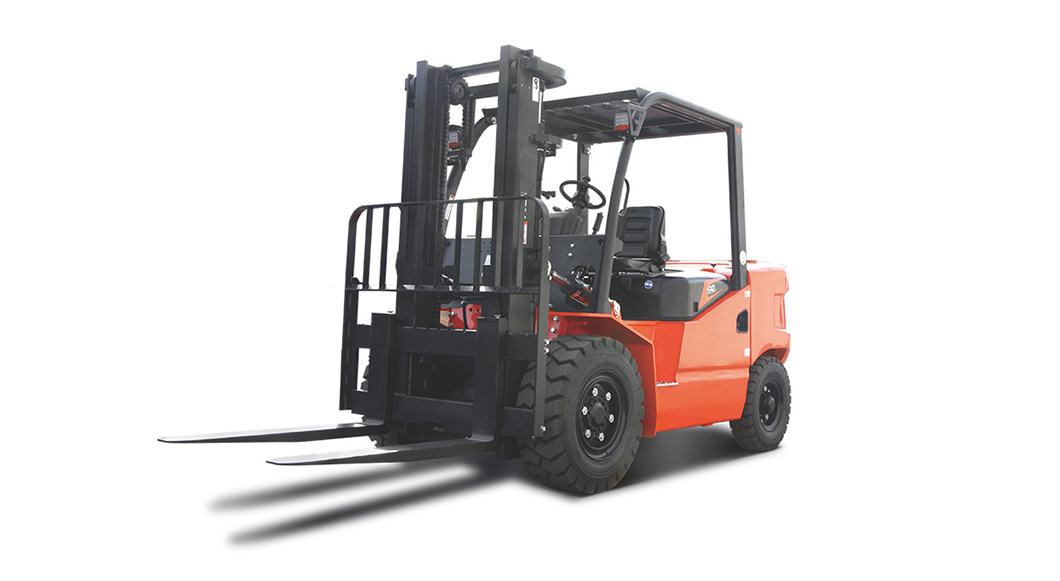

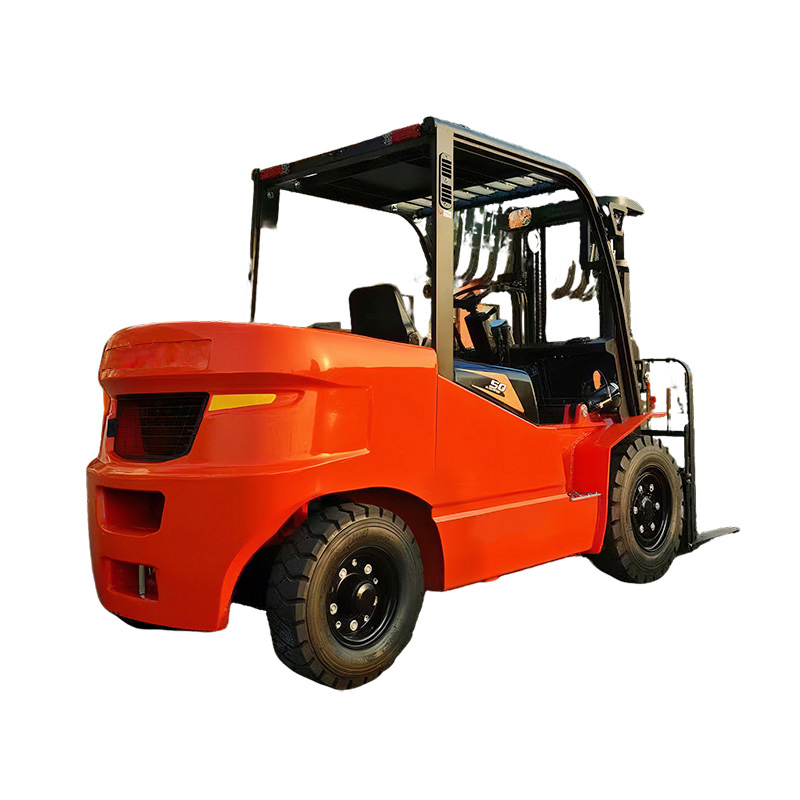

The core components of the A series 4-5t internal combustion forklift have been fully verified by the market and are mature and reliable. The whole machine integrates the research and design concepts of "safety", "reliability", "efficiency" and "comfort", combines CheersMetal's many years of technical exploration and design innovation in the field of internal combustion forklifts, adds the latest technology and process development results, and highlights the traditional attributes of durability and high cost performance.
Hard-core configuration is more complete
·Equipped with a variety of powerful low-emission engines, you can drive as you like.
·The reinforced drive axle has high casting precision and stronger axle body.
·The soft-connect gearbox has rich configurations, which have been fully verified by the market and are mature and reliable.
·Reinforced cast steering axle has high load-bearing capacity and long service life.
·The brake pedal and accelerator pedal are optimized to improve driving comfort.
·The small-diameter steering wheel greatly reduces the operating intensity and improves the driver's operating convenience.
·Humanized designs such as anti-slip metal pedals make operation more comfortable.
Specification
charac- teristic | 1.1 | Manufacturer(abbreviation) | CheersMetal | CheersMetal | CheersMetal | CheersMetal | CheersMetal | CheersMetal | |
1.2 | CheersMetalModel | CPC(D)40-AQ2 | CPC(D)45-AQ2 | CPC(D)50-AQ2 | CPCD40-AS3 | CPCD45-AS3 | CPCD50-AS3 | ||
1.3 | Powerform | dieselfuel | dieselfuel | dieselfuel | dieselfuel | dieselfuel | dieselfuel | ||
1.4 | Operationform | Seated | Seated | Seated | Seated | Seated | Seated | ||
1.5 | Ratedloadcapacity | Q(kg) | 4000 | 4500 | 5000 | 4000 | 4500 | 5000 | |
1.6 | Loadcenterdistance | c(mm) | 500 | 500 | 500 | 500 | 500 | 500 | |
1.8 | Frontoverhang | x(mm) | 555 | 555 | 555 | 555 | 555 | 555 | |
1.9 | Wheelbase | y(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
weight | 2.1 | Deadweight | kg | 6350(6550) | 6550(6750) | 6800(7000) | 6350(6550) | 6550(6750) | 6800(7000) |
2.2 | Axleloadatfullload,front/rear | kg | 8850/1500 | 9700/1350 | 10500/1300 | 8850/1500 | 9700/1350 | 10500/1300 | |
2.3 | Axleloadwhenunloaded,front/rear | kg | 2900/3450 | 2900/3650 | 2900/3900 | 2900/3450 | 2900/3650 | 2900/3900 | |
tire | 3.1 | solidrubber,superelastic,pneumatic,polyurethane | Pneumatictire | Pneumatictire | Pneumatictire | Pneumatictire | Pneumatictire | Pneumatictire | |
3.2 | Frontwheelspecifications | 8.25-15-14PR | 300-15-18PR | 300-15-18PR | 8.25-15-14PR | 300-15-14PR | 300-15-14PR | ||
3.3 | Rearwheelspecifications | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||
3.5 | Numberofwheels,front/rear(x=drivewheels) | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | ||
3.6 | Frontwheeltrack | b10(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | |
3.7 | Rearwheeltrack | b11(mm) | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | |
size parameter | 4.1 | Mast/forkframetiltangle,forward/backward | α/β(°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
4.2 | Mastretractedheight | h1(mm) | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | |
4.3 | Freeliftingheight | h2(mm) | 150 | 150 | 150 | 150 | 150 | 150 | |
4.4 | Liftingheight | h3(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
4.4a | Liftingheight(includingforkthickness) | h23(mm) | 3050 | 3050 | 3050 | 3050 | 3050 | 3050 | |
4.5 | Mastexpansionheight | h4(mm) | 4300 | 4300 | 4300 | 4300 | 4300 | 4300 | |
4.7 | Heightofoverheadguardrail | h6(mm) | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | |
4.8 | Seatheight | h7(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
4.12 | Heightoftractionpin | h10(mm) | 390 | 390 | 390 | 390 | 390 | 390 | |
4.19 | Totallength | l1(mm) | 4305 | 4305 | 4305 | 4305 | 4305 | 4305 | |
4.20 | Vehiclelength(excludingforks) | l2(mm) | 3235 | 3235 | 3235 | 3235 | 3235 | 3235 | |
4.21 | Overallwidth(frame/tire) | b1(mm) | 1480/1430 | 1480/1490 | 1480/1490 | 1480/1480 | 1480/1490 | 1480/1490 | |
4.22 | Forksize | s/e/l(mm) | 1070/150/50 | 1070/150/50 | 1070/150/50 | 1070/150/50 | 1070/150/50 | 1070/150/50 | |
4.23 | Forkinstallationlevel | 3A | 3A | 3A | 3A | 3A | 3A | ||
4.24 | Forkcarriagewidth | b3(mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
4.31 | Groundclearancebelowmast(noload) | m1(mm) | 180 | 180 | 180 | 180 | 180 | 180 | |
4.32 | Wheelbasecentergroundclearance | m2(mm) | 235 | 235 | 235 | 235 | 235 | 235 | |
4.34.1 | Workingchannelwidth,1000X1200pallet(1200forkplacement) | Ast(mm) | 4685 | 4685 | 4685 | 4685 | 4685 | 4685 | |
4.34.2 | Workingchannelwidth,800X1200pallets(1200placedalongtheforks) | Ast(mm) | 4885 | 4885 | 4885 | 4885 | 4885 | 4885 | |
4.35 | TurningRadius | Wa(mm) | 2930 | 2930 | 2930 | 2930 | 2930 | 2930 | |
4.36 | Innerturningradius | b13(mm) | 960 | 960 | 960 | 960 | 960 | 960 | |
Performance parameters | 5.1 | Travelspeed,full/noload,mechanicaltransmission | km/h | 18/19 | 18/19 | 18/19 | / | / | / |
Travelspeed,full/noload,hydraulictransmission | km/h | 24/25 | 24/25 | 24/25 | 21/22 | 21/22 | 21/22 | ||
5.2 | Liftingspeed,full/empty,two-stagegantry | mm/s | 500/530 | 500/530 | 500/530 | / | / | / | |
Liftingspeed,full/empty,two-stagegantry | mm/s | 530/560 | 530/560 | 530/560 | 450/500 | 450/500 | 450/500 | ||
5.3 | Loweringspeed,full/empty,two-stagemast | mm/s | 400/430 | 400/430 | 400/430 | 410/430 | 400/430 | 400/430 | |
5.6 | Maximumtraction,full/noload,mechanicaltransmission | kN | 32/20 | 32/20 | 32/20 | / | / | / | |
5.6a | Maximumtraction,full/noload,hydraulictransmission | kN | 40/22 | 40/22 | 40/22 | 34/22 | 34/22 | 34/22 | |
5.7 | Climbinggrade,full/noloadS2,mechanicaltransmission | % | 22/20 | 22/20 | 22/20 | / | / | / | |
5.7a | Gradeability,full/noloadS2,hydraulictransmission | % | 26/20 | 26/20 | 26/20 | 22/20 | 22/20 | 22/20 | |
5.10 | Servicebrake | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
engine | 7.1 | EngineManufacturer | QuanchaiV35-88C41 (NationalIV) | QuanchaiV35-88C41 (NationalIV) | QuanchaiV35-88C41 (NationalIV) | MitsubishiS6S-G364CSFL (EuroA) | MitsubishiS6S-G364CSFL (EuroA) | MitsubishiS6S-G364CSFL (EuroA) | |
7.2 | EngineRatedPowerISO1585 | kw | 65 | 65 | 65 | 52 | 52 | 52 | |
7.3 | Ratedspeed | rpm | 2200 | 2200 | 2200 | 2300 | 2300 | 2300 | |
7.4 | Numberofcylinders/displacement | cm3 | 4/3470 | 4/3470 | 4/3470 | 6/4966 | 6/4966 | 6/4966 | |
7.5a | MaximumTorque | N.m/rpm | 350/1800 | 350/1800 | 350/1800 | 248/1700 | 248/1700 | 248/1700 | |
7.9 | Vehiclesystemratedvoltage | V | 12 | 12 | 12 | 24 | 24 | 24 | |
7.10 | Startingbatterycapacity | V/Ah | 12/120 | 12/120 | 12/120 | 12/80 | 12/80 | 12/80 | |
Gearbox | 8.1 | Transmissiontype | Mechanical(Hydraulic) | Mechanical(Hydraulic) | Mechanical(Hydraulic) | Hydraulic | Hydraulic | Hydraulic | |
8.2 | Gear,forward/reverse | 2/2(2/1) | 2/2(2/1) | 2/2(2/1) | 2/1 | 2/1 | 2/1 | ||
8.3 | Gearshiftingmethod | Mechanical(Electro-Hydraulic) | Mechanical(Electro-Hydraulic) | Mechanical(Electro-Hydraulic) | Electrohydraulic | Electrohydraulic | Electrohydraulic | ||
other | 10.1 | Workingpressureofattachments | Mpa | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
10.2 | AttachmentWorkFlow | L/min | 60 | 60 | 60 | 60 | 60 | 60 | |
10.4 | Fueltankcapacity | L | 90 | 90 | 90 | 90 | 90 | 90 | |
10.8 | KingpinspecificationsDIN15170 | 35 | 35 | 35 | 35 | 35 | 35 |
