Company Advantages1. Each Cheerong towable passenger stairs is produced by our design department. They spend time exploring, testing and assessing a variety of materials and processes that fit the scope of this bedding work. It will provide durable and cost-efficient operation for decades
2. airport Stairs is optimized to maximize profits, and at the same time minimize the impact of business operations on the environment. It is designed to maximize capacity and evenly distribute the load
3. The product is highly praised and has a long service life. It excellently supports cargo/passenger loading operations
4. The quality of this product is excellent, exceeding the industry standard. Its materials include laser-cut steel, stainless steel, and aluminum
Aircraft passenger stairs, also known as boarding stairs or aircraft steps, are mobile staircases used to enable passengers to board and deboard aircraft. They are crucial for airports and airlines that operate smaller aircraft or those that use remote stands rather than jet bridges. These stairs provide a safe and convenient way for passengers to access the aircraft, especially in locations where jet bridges are not available.
Safety
Adjustability
Portability
Durability
Product Description
Name | Self Propelled Airport Electric Aircraft Passenger Stairs |
Length (mm) | 7850 |
Widht (mm) | 2400 |
Height (mm) | 3740 |
Wheel centre distance (front/rear) (mm) | 2025/2000 |
Top speed (km/h) | 25 |
Minimum ground clearance (mm) | 160 |
Passenger ladder working height (mm) | 2300～5800 |
Ladder Deep (mm) | 290 |
Ladder width (mm) | 1450 |
Ladder height (mm) | 190 |
Maximum tilt angle of the ladder (°) | 38 |
Temperature range (℃) | -15~45 |
Battery life (km) | 60 |
Battery life km plus times (middle airports) | 48+23 |
Quality (kg) | 9750 |
Front axle carrying quality (kg) | 5150 |
Back axle carrying quality (kg) | 4600 |
Wheelbase (mm) | 3200 |
Channel Outer Circle Diameter (mm) | 17000 |
Event Platform Trips (mm) | 0~300 |
Height adjustment | Up and down body telescopic |
Number of steps on the upper ladder | 13 |
Number of steps down the ladder | 14 |
Number of steps on the tail ladder | 1 |
On the platform deep (mm) | 2950 |
Upper platform width (mm) | 2165 |
Battery life km plus times (large airports) | 48+22 |
Battery life km plus times (small airports) | 49+24 |
Speed control controller |
Input voltage (VDC) | 80 |
Rated output voltage (VAC) | 50~55 |
Speed-up mode | Vector speed |
Battery |
Type | Lead acid |
End voltage (V) | 80 |
Rated capacity Ah | 640 |
Drive motor |
Type | AC variable frequency |
Rated power (kw/r/min) | 23/2063 |
Rated current (A) | 295 |
Insulation grade | H |
Protection level | IP55 |
Rated voltage (VAC) | 55 |
Which Aircraft Models are our Airport Electric Aircraft Passenger Stairs applied for?
The designed height is from 2300mm to 5800mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777 & etc.
Detailed Images

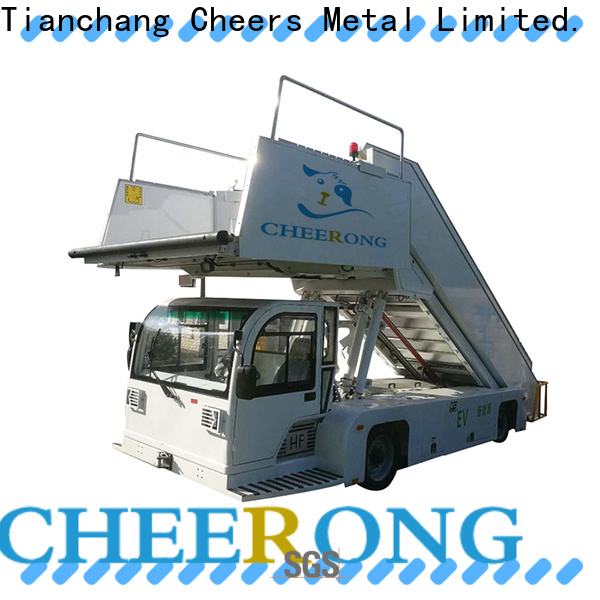

Detailed Image of Self Propelled Airport Electric Aircraft Passenger Stairs
Product packaging
Packing of Self Propelled Airport Aircraft Passenger Stairs
It's packed by frame container, the freight fee is a little higher compared with standard shipping container.
Company Introduction
Excellent qulity & fast delivery
We are specializing in the production of Self Propelled Airport Electric Aircraft Passenger Stairs
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for Self Propelled Airport Electric Aircraft Passenger Stairs?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.
Q: Do you provide sample? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record. The standard warranty is one year.
Q: What is your terms of payment for Self Propelled Airport Electric Aircraft Passenger Stairs?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need Self Propelled Airport Electric Aircraft Passenger Stairs with Maximum load-bearing 60 peoples or 70 peoples at the same time?
Q2: How many do you need?
Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.
Wecome to contact us at any time.
