Company Advantages1. airport Stairs produced by Tianchang Cheers Metal Limited. are chiefly characterized by their aircraft steps . It has large advertising panels for in-house promotion or can be rented to third parties
2. With good economic effectiveness, this product will become more acceptable. It can be Open, Closed and Semi-open
3. Thanks to the establishment of a set of cost control system and measures suitable for Tianchang Cheers Metal Limited. the actual situation, in the process of production airport Stairs the consumption of manpower, material resources, resources, etc. is low, the loss is low, and the utilization rate and development rate of resources are high , so that the aircraft stairs produced not only has high performance, structure, and quality, but also has excellent price, and the customer's procurement cost is low. Large-scale procurement can save customers more procurement costs.
4. While strictly controlling product quality, the company strives to save production costs and create the greatest economic benefits with the least production costs, so that the airport Stairs produced has a price advantage in the market.
5. Tianchang Cheers Metal Limited. Not only insist on using high-quality and reasonably priced raw materials for manufacturingairport Stairs , but also strictly control every link of product production to ensure that all raw materials can be fully utilized, reduce the loss rate of raw materials, and promote the production of Tianchang Cheers Metal Limited. 10058] Compared with other products in the market, it has a more prominent price advantage.
Aircraft passenger stairs, also known as boarding stairs or aircraft steps, are mobile staircases used to enable passengers to board and deboard aircraft. They are crucial for airports and airlines that operate smaller aircraft or those that use remote stands rather than jet bridges. These stairs provide a safe and convenient way for passengers to access the aircraft, especially in locations where jet bridges are not available.
Safety
Adjustability
Portability
Durability
Product Description
Name | Self Propelled Airport Mobile Passenger Stairs |
Length (mm) | 7850 |
Widht (mm) | 2400 |
Height (mm) | 3740 |
Wheel centre distance (front/rear) (mm) | 2025/2000 |
Top speed (km/h) | 25 |
Minimum ground clearance (mm) | 160 |
Passenger ladder working height (mm) | 2300~5800 |
Ladder Deep (mm) | 290 |
Ladder width (mm) | 1450 |
Ladder height (mm) | 190 |
Maximum tilt angle of the ladder (°) | 38 |
Temperature range (℃) | -15~45 |
Battery life (km) | 60 |
Battery life km plus times (middle airports) | 48+23 |
Quality (kg) | 9750 |
Front axle carrying quality (kg) | 5150 |
Back axle carrying quality (kg) | 4600 |
Wheelbase (mm) | 3200 |
Channel Outer Circle Diameter (mm) | 17000 |
Event Platform Trips (mm) | 0~300 |
Height adjustment | Up and down body telescopic |
Number of steps on the upper ladder | 13 |
Number of steps down the ladder | 14 |
Number of steps on the tail ladder | 1 |
On the platform deep (mm) | 2950 |
Upper platform width (mm) | 2165 |
Battery life km plus times (large airports) | 48+22 |
Battery life km plus times (small airports) | 49+24 |
Speed control controller |
Input voltage (VDC) | 80 |
Rated output voltage (VAC) | 50~55 |
Speed-up mode | Vector speed |
Battery |
Type | Lead acid |
End voltage (V) | 80 |
Rated capacity Ah | 640 |
Drive motor |
Type | AC variable frequency |
Rated power (kw/r/min) | 23/2063 |
Rated current (A) | 295 |
Insulation grade | H |
Protection level | IP55 |
Rated voltage (VAC) | 55 |
Which Aircraft Models are our Airport Electric Aircraft Passenger Stairs applied for?
The designed height is from 2300mm to 5800mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777 & etc.
Detailed Images

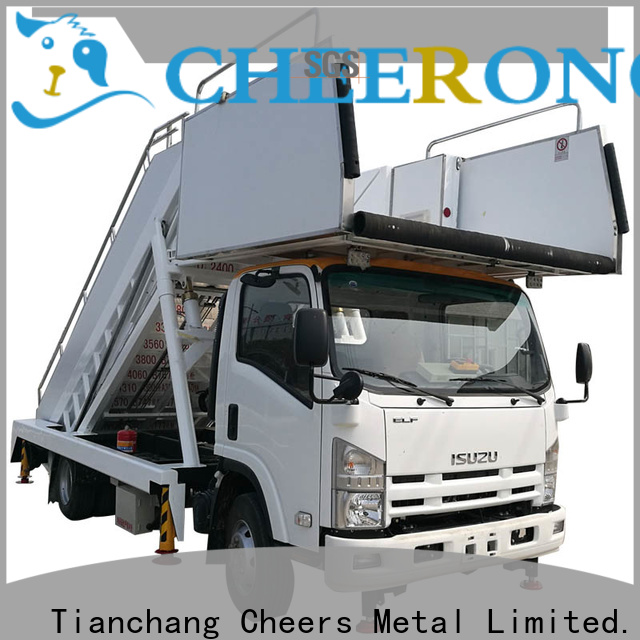

Detailed Image of Self Propelled Airport Electric Aircraft Passenger Stairs
Product packaging
Packing of Self Propelled Airport Aircraft Passenger Stairs
It's packed by frame container, the freight fee is a little higher compared with standard shipping container.
Company Introduction


Excellent qulity & fast delivery
We are specializing in the production of Self Propelled Airport Electric Aircraft Passenger Stairs
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for Mobile Passenger Stairs?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.
Q: Do you provide sample? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record. The standard warranty is one year.
Q: What is your terms of payment for Mobile Passenger Stairs?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need Mobile Passenger Stairs with Maximum load-bearing 60 peoples or 70 peoples at the same time?
Q2: How many do you need?
Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.
Wecome to contact us at any time.
Company Features1. Tianchang Cheers Metal Limited. is a world-class enterprise with international competitiveness in the airport Stairs industry. Cheerong has its own team to help improve the performance of aircraft stairs .
2. By improving the technical strength, Cheerong has achieved many achievements in providing high quality aircraft passenger stairs.
3. Tianchang Cheers Metal Limited. has the latest technology for producing airplane Stairs . Tianchang Cheers Metal Limited. will respect every customer's requirement and try to do it well. Inquiry!
