hot recommended aircraft passenger stairs overseas trader for airdrome

Hot recommended aircraft passenger stairs overseas trader for airdrome

Place of Origin:
China
Lead Time:
25-35days
Material:
Steel
Wheel:
6 wheels
Load-bearing:
2T
Supply Ability:
50pcs/month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Introduction

Aircraft passenger stairs, also known as boarding stairs or aircraft steps, are mobile staircases used to enable passengers to board and deboard aircraft. They are crucial for airports and airlines that operate smaller aircraft or those that use remote stands rather than jet bridges. These stairs provide a safe and convenient way for passengers to access the aircraft, especially in locations where jet bridges are not available.

Benefits
  • Safety

    • Ensure that the stairs are equipped with handrails, non-slip steps, and robust safety features to prevent accidents during boarding and deplaning.

  • Adjustability

    • Stairs should be adjustable to accommodate various aircraft heights. Powered stairs often provide easier and quicker adjustments.

  • Portability

    • Depending on your needs, consider whether manual or powered stairs are more suitable for the expected frequency of use and operational environment.

  • Durability

    • Aircraft passenger stairs need to withstand harsh weather conditions and heavy use. Look for models made from high-quality materials designed for durability.

Product Description

Name
Self Propelled Airport Electric Aircraft Passenger Stairs
Length (mm)
7850
Widht (mm)
2400
Height (mm)
3740
Wheel centre distance (front/rear) (mm)
2025/2000
Top speed (km/h)
25
Minimum ground clearance (mm)
160
Passenger ladder working height (mm)
2300~5800
Ladder Deep (mm)
290
Ladder width (mm)
1450
Ladder height (mm)
190
Maximum tilt angle of the ladder (°)
38
Temperature range (℃)
-15~45
Battery life (km)
60
Battery life km plus times (middle airports)
48+23
Quality (kg)
9750
Front axle carrying quality (kg)
5150
Back axle carrying quality (kg)
4600
Wheelbase (mm)
3200
Channel Outer Circle Diameter (mm)
17000
Event Platform Trips (mm)
0~300
Height adjustment
Up and down body telescopic
Number of steps on the upper ladder
13
Number of steps down the ladder
14
Number of steps on the tail ladder
1
On the platform deep (mm)
2950
Upper platform width (mm)
2165
Battery life km plus times (large airports)
48+22
Battery life km plus times (small airports)
49+24
Speed control controller
Input voltage (VDC)
80
Rated output voltage (VAC)
50~55
Speed-up mode
Vector speed
Battery
Type
Lead acid
End voltage (V)
80
Rated capacity Ah
640
Drive motor
Type
AC variable frequency
Rated power (kw/r/min)
23/2063
Rated current (A)
295
Insulation grade
H
Protection level
IP55
Rated voltage (VAC)
55



Which Aircraft Models are our Airport Electric Aircraft Passenger Stairs applied for?


The designed height is from 2300mm to 5800mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777 & etc.


Detailed Images

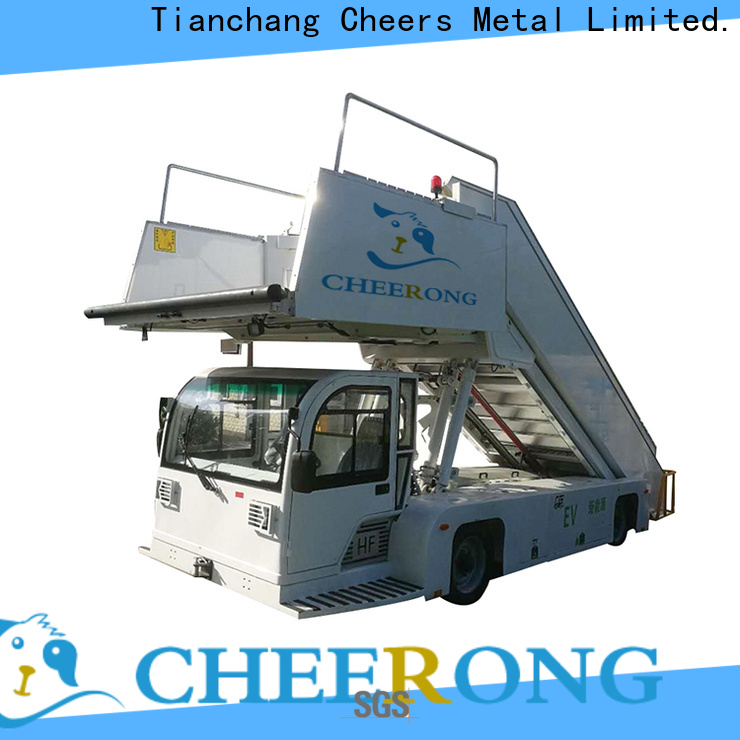

hot recommended aircraft passenger stairs overseas trader for airdrome-1

hot recommended aircraft passenger stairs overseas trader for airdrome-2


Detailed Image of Self Propelled Airport Electric Aircraft Passenger Stairs
Product packaging
hot recommended aircraft passenger stairs overseas trader for airdrome-3
Packing of Self Propelled Airport Aircraft Passenger Stairs
It's packed by frame container, the freight fee is a little higher compared with standard shipping container.
Company Introduction

hot recommended aircraft passenger stairs overseas trader for airdrome-4

hot recommended aircraft passenger stairs overseas trader for airdrome-5


Excellent qulity & fast delivery
We are specializing in the production of Self Propelled Airport Electric Aircraft Passenger Stairs

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for Self Propelled Airport Electric Aircraft Passenger Stairs?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.

Q: Do you provide sample? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record.
The standard warranty is one year.

Q: What is your terms of payment for Self Propelled Airport Electric Aircraft Passenger Stairs?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need Self Propelled Airport Electric Aircraft Passenger Stairs with Maximum load-bearing 60 peoples or 70 peoples at the same time?

Q2: How many do you need?

Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.

Wecome to contact us at any time.



Every part of Cheerong towable passenger stairs is exquisitely crafted to meet the quality standards required in the phone accessory industry, such as impact and wear resistance. Meixin keeps strict quality control of the products
Cheerong aircraft passenger stairs conform to a variety of security standards for the electric appliance. Its water-proof, anti-vibration, moisture-resistant, and impact-resistant performance all meet relevant requirements. The products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
Cheerong aircraft passenger stairs is produced based on high safety standards. Its electric parts, including electrical resistor, rheostat, mutual inductor, and disconnector all have passed relevant safety and electric tests. Meixin products enjoy one-year warranty
Many factors have been considered during the development of Cheerong towable passenger stairs. From the shielding case, conductor, arrangement of circuits, PCB design, to even the size of the heat sink are all carefully thought over and experimented by the technicians. Wearing parts and spare parts are of standardized design
Cheerong aircraft passenger stairs has passed various tests conducted by the QC team. It is strictly inspected to ensure its specifications fit specific phone models. Meixin innovative ability enables to constantly develop new products
The product is characterized by increased operational flexibility. It can be adapted to multiple directions to perform a wide variety of multitasking.
