Product Description

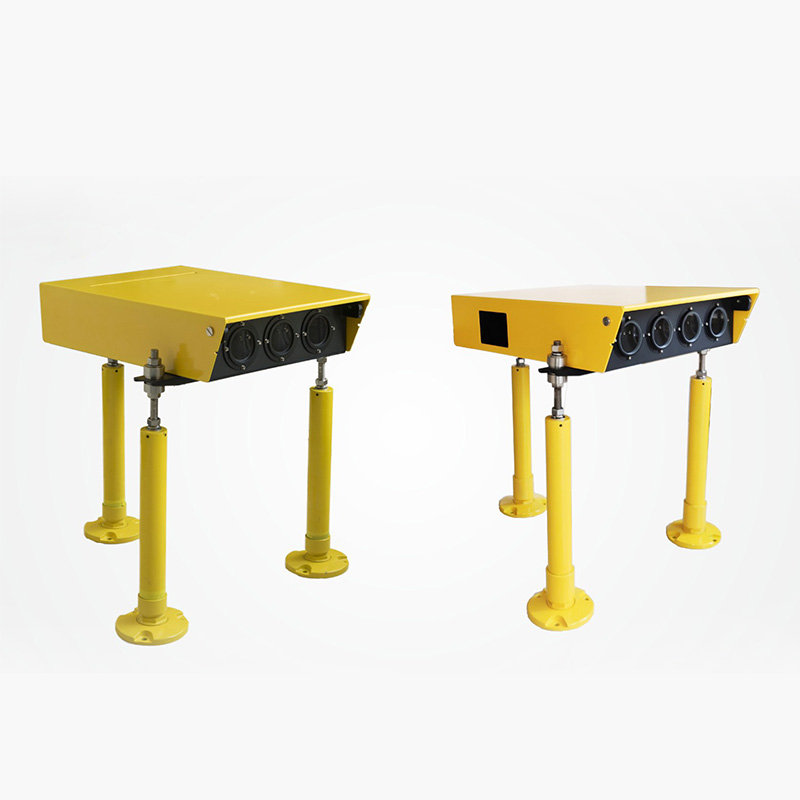

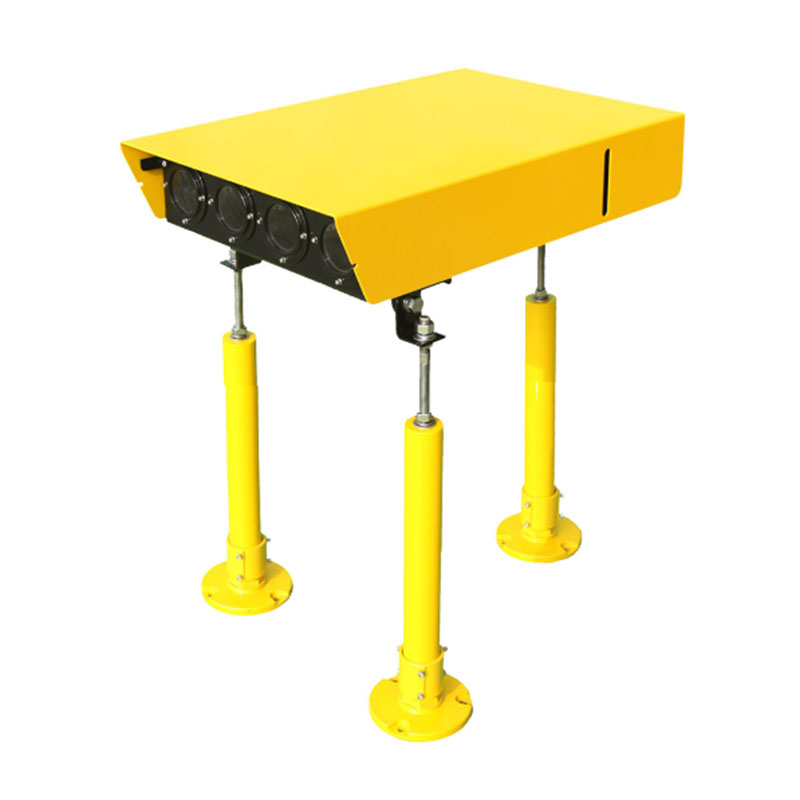

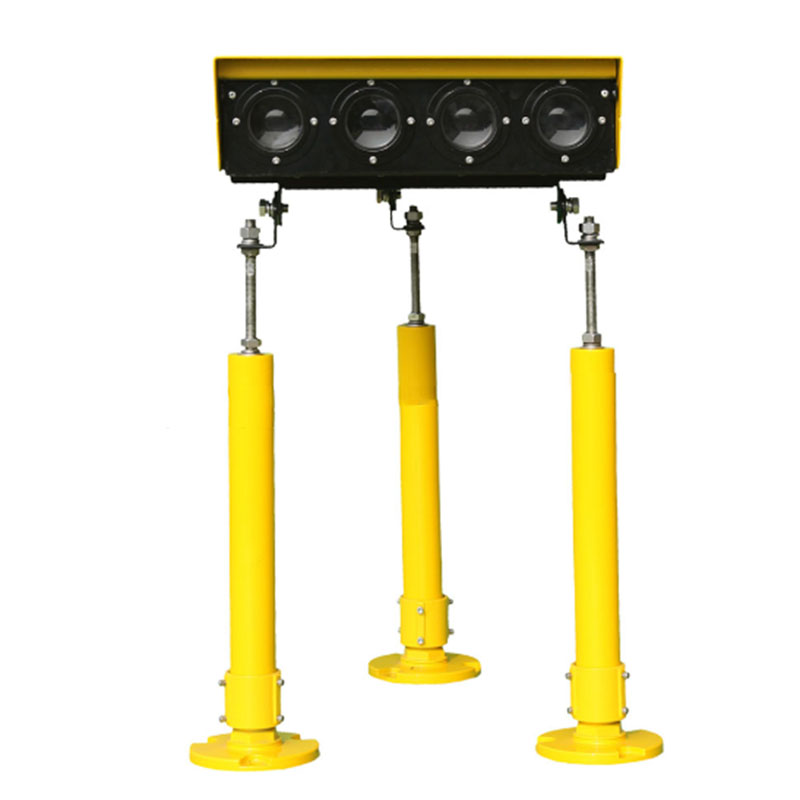

The PAPI is applicable to large - scale civil airports and heliports. It provides visual assistance for airport pilots, guiding aircraft to land safely on the appropriate approach path.

Specification

1. The system will be shut down when the elevation angle exceeds the threshold. Each lamp has its own electronic angle chip, which can be displayed instantly through the LED digital tube with an accuracy of up to 0.01° (0.6 points); it can store angle data;

2. The "operation mode" and "flight calibration mode" can be set separately, which is more convenient for debugging;

3. The use time data of each light source bulb can be viewed at any time, and the operating status of the system can be counted and recorded;

4. The box contains a calibration bubble, which intuitively indicates the angle status after the "flight calibration" is completed;

5. The control system is effectively isolated from the heat source to prevent electrical equipment from malfunctioning due to overheating;

6. The precise self-positioning design of the bulb and color filter does not require re-calibration when replacing the optical device, making replacement more convenient;

7. The main body is made of lightweight aluminum alloy material with special surface treatment, and the fasteners are all made of high-quality stainless steel material;

8. Small size, strong overall wind resistance, can withstand 161km/h wind force.


Features

1. Technical parameters: power: 400W;

2. Ambient temperature:-55℃-+55℃;

3. Protection grade:IP65;

4. Light intensity:30000cd, transition zone less than 3.
