Product Description

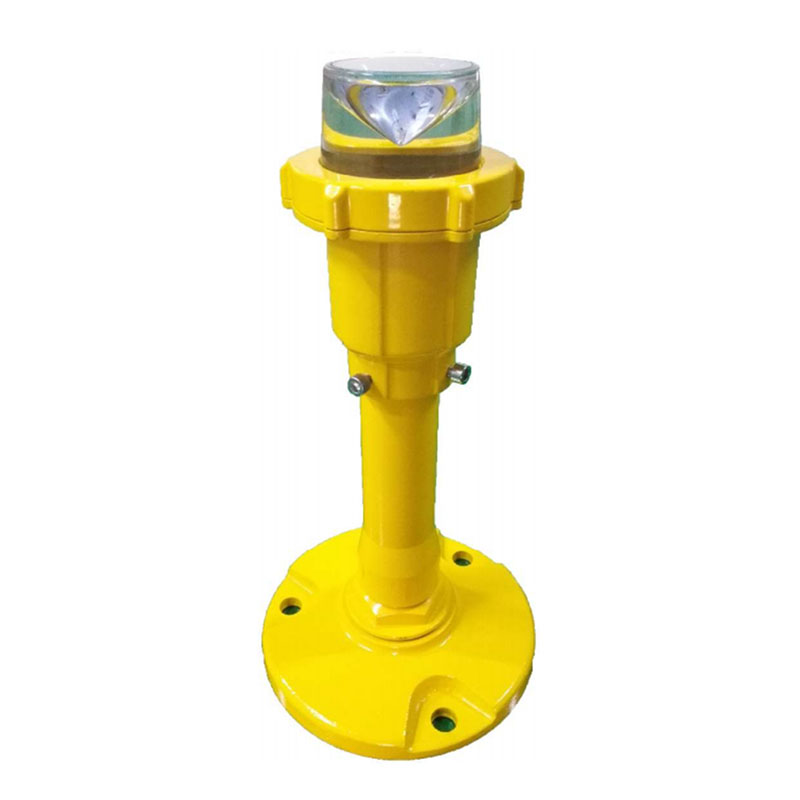

The vertical taxiway edge light is a crucial lighting device in airport ground lighting systems. It is specifically designed to mark the edges of taxiways, providing clear visual guidance for aircraft during taxiing operations, thereby enhancing ground - movement safety.

Specification

●The lamp design is strictly in accordance with the technical requirements of CAAC: "Technical Requirements for Runway and Taxiway Aids" (AC-137-CA-2015-03-R1);

●The long life, energy saving and maintenance-free characteristics of LED bring economic benefits;

●High-efficiency power factor correction circuit effectively reduces interference with the power supply network;

●High-frequency switching LED constant current circuit;

●High-precision digital dimming, perfectly simulating the dimming curve of halogen light source;

●Professional LED heat dissipation method, effectively reducing the operating temperature of lamp beads and drivers, ensuring the long service life of LED;

●Adopting 125-degree high-temperature long-life electrolytic capacitors to improve the stability of LED driver power supply;

●The overall structure of the lamp is compact, beautiful in shape, small in windward area, and strong in wind resistance (can withstand a wind speed of 240km/h);

●The main body of the lamp is made of aluminum alloy and the surface is anti-corrosion treated, which is light, strong and has good anti-corrosion performance;

●The overall protection of the lamp reaches IP54 level, eliminating dust and rain, etc. Corrosion inside the lamp;

●The glass lens is made of special tempered glass to prevent the glass lens from bursting due to drastic temperature changes;

●The fasteners are made of stainless steel and are durable;

●The easily breakable parts are precision machined to meet CAAC and FAA requirements, and the performance is stable and reliable;

●The parts are modularly designed and universal, easy to replace.


Features

1. Power:5W;

2. Power factor:0.8-0.96;

3. Protection:IP65;

4. Brightness:>2cd;

5. Ambient temperature:-55-+55℃.
